Pipe

Pipe is a calculation program for pipes and is available in three different versions. The table below describes the functionality of the different programs:

	Properties	Pipe1B	Pipe1B1R	Pipe1B2R
Medium:	23 brines	✓	✓	✓
	44 refrigerants	–	✓	✓
Pipe type:	Hotgas	–	✓	✓
	HP liquid	–	✓	✓
	Dry suction line	–	✓	✓
	After exp valve line	–	✓	✓
	Pump circulation line	–	–	✓
	Wet return	–	–	✓
Other:	Pipe dimensions, 10 pipe series	✓	✓	✓
	Database with valves for brines	✓	✓	✓
	Database of valves for refrigerants	–	✓	✓
	Database with regulating valves	✓	✓	✓
	Save on file	✓	✓	✓
	Print	✓	✓	✓
	Print as PDF	✓	✓	✓
Price:		€ 320*	€ 470*	€ 630*

* All prices exclude VAT.

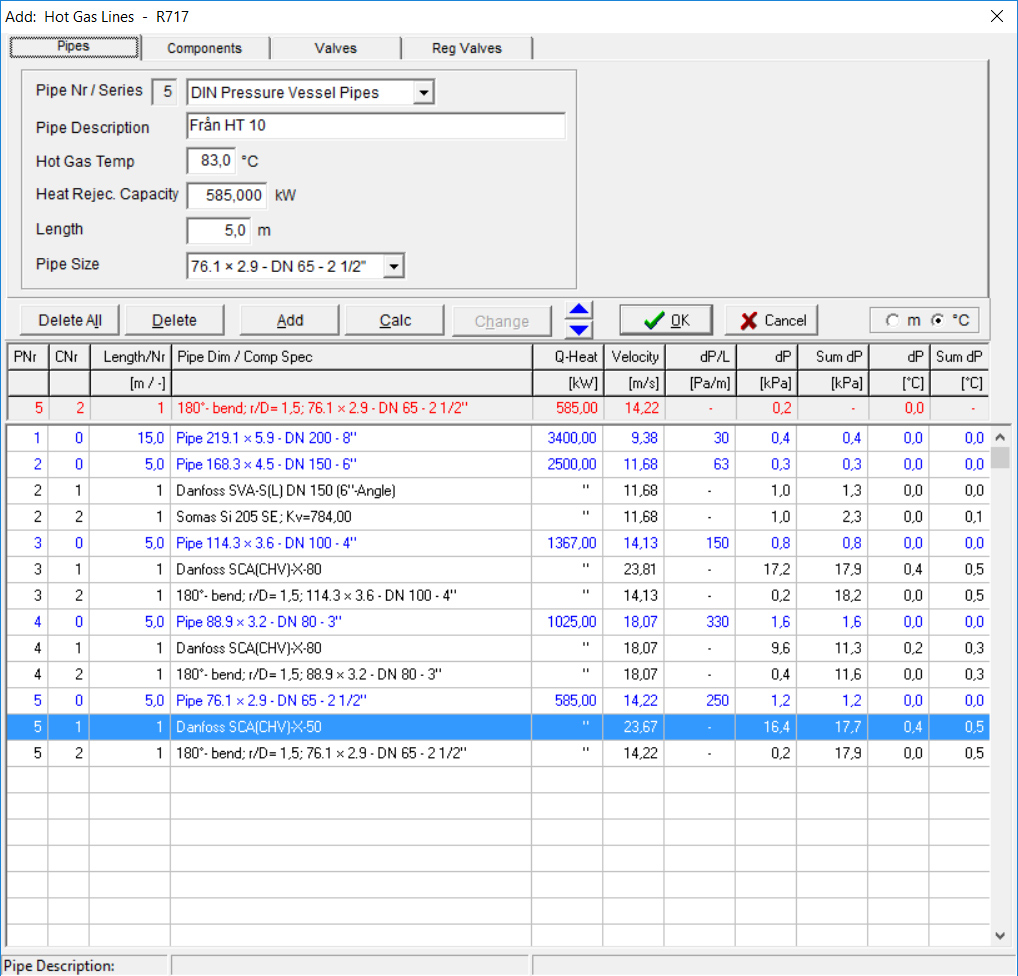

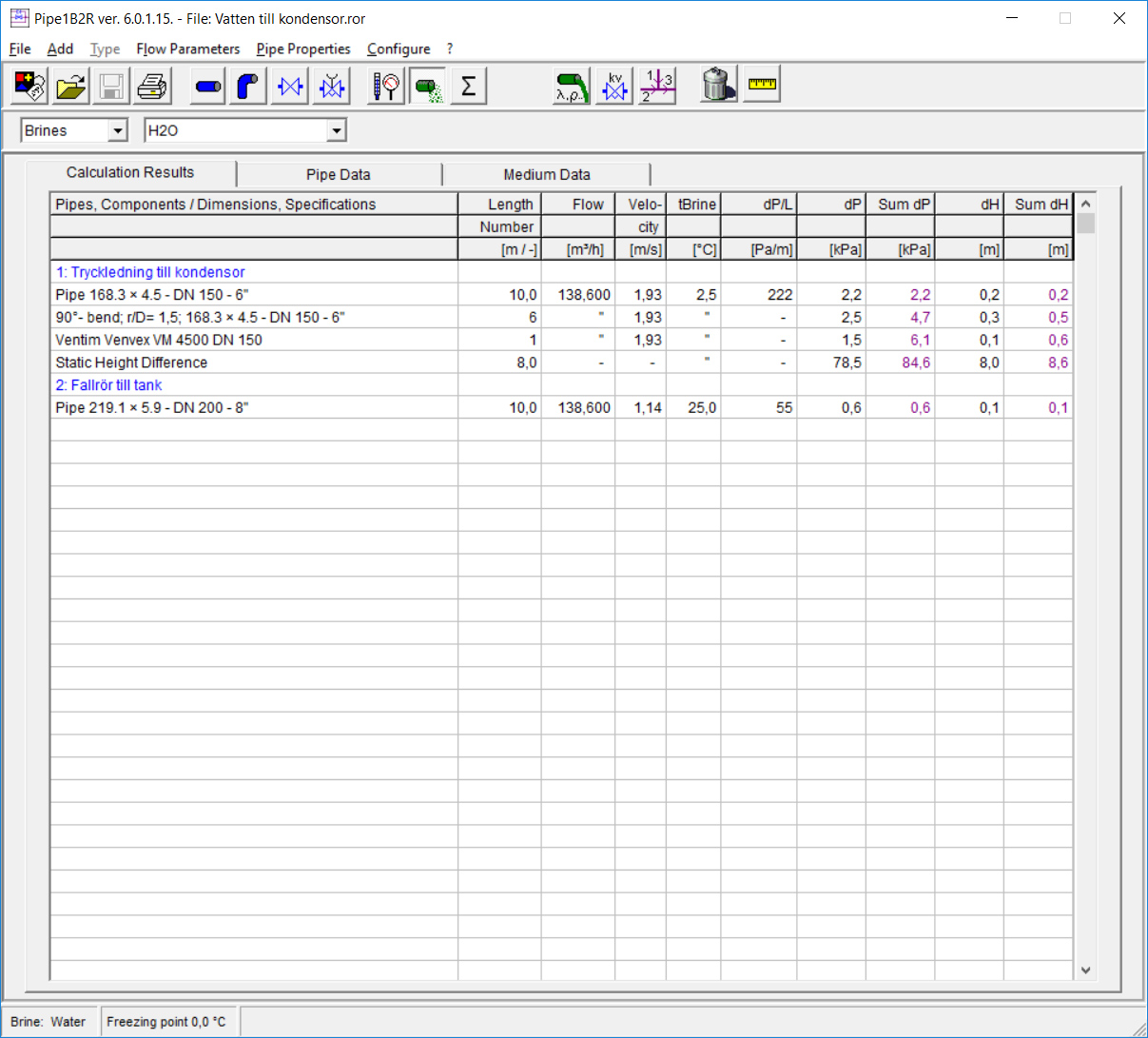

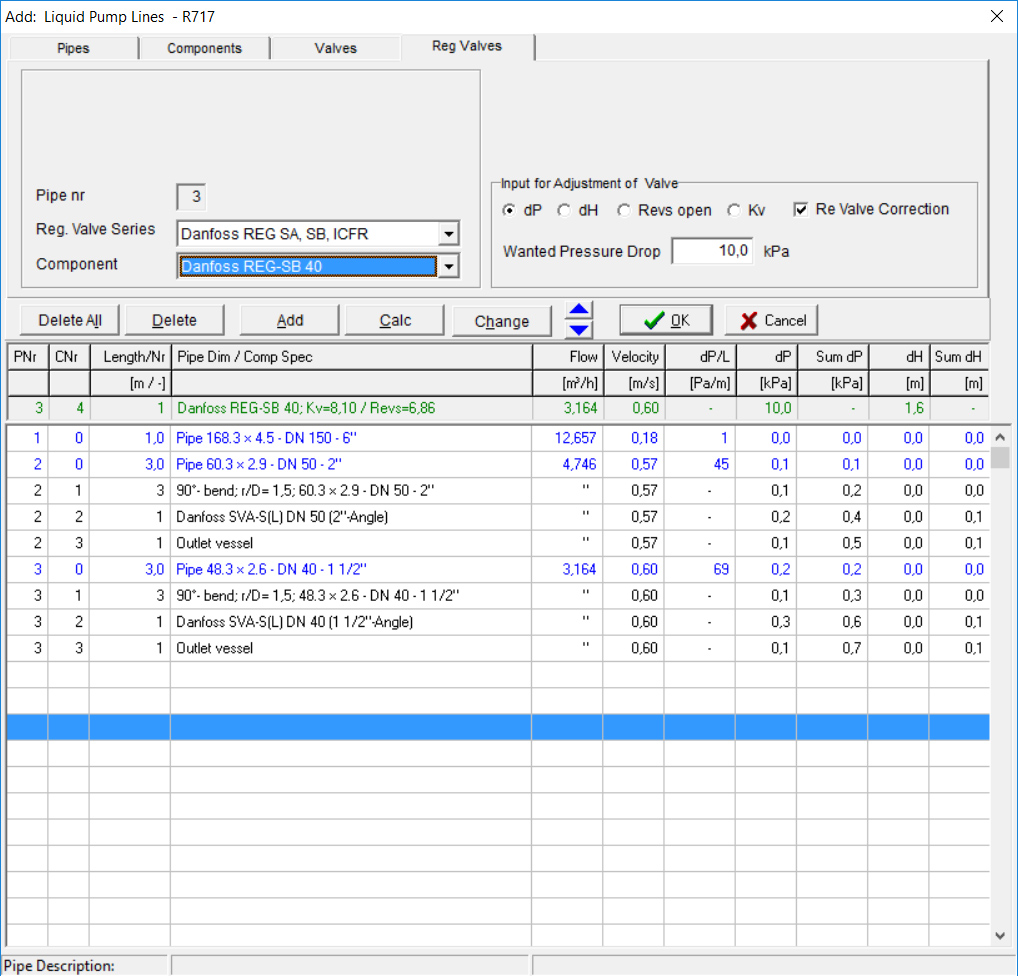

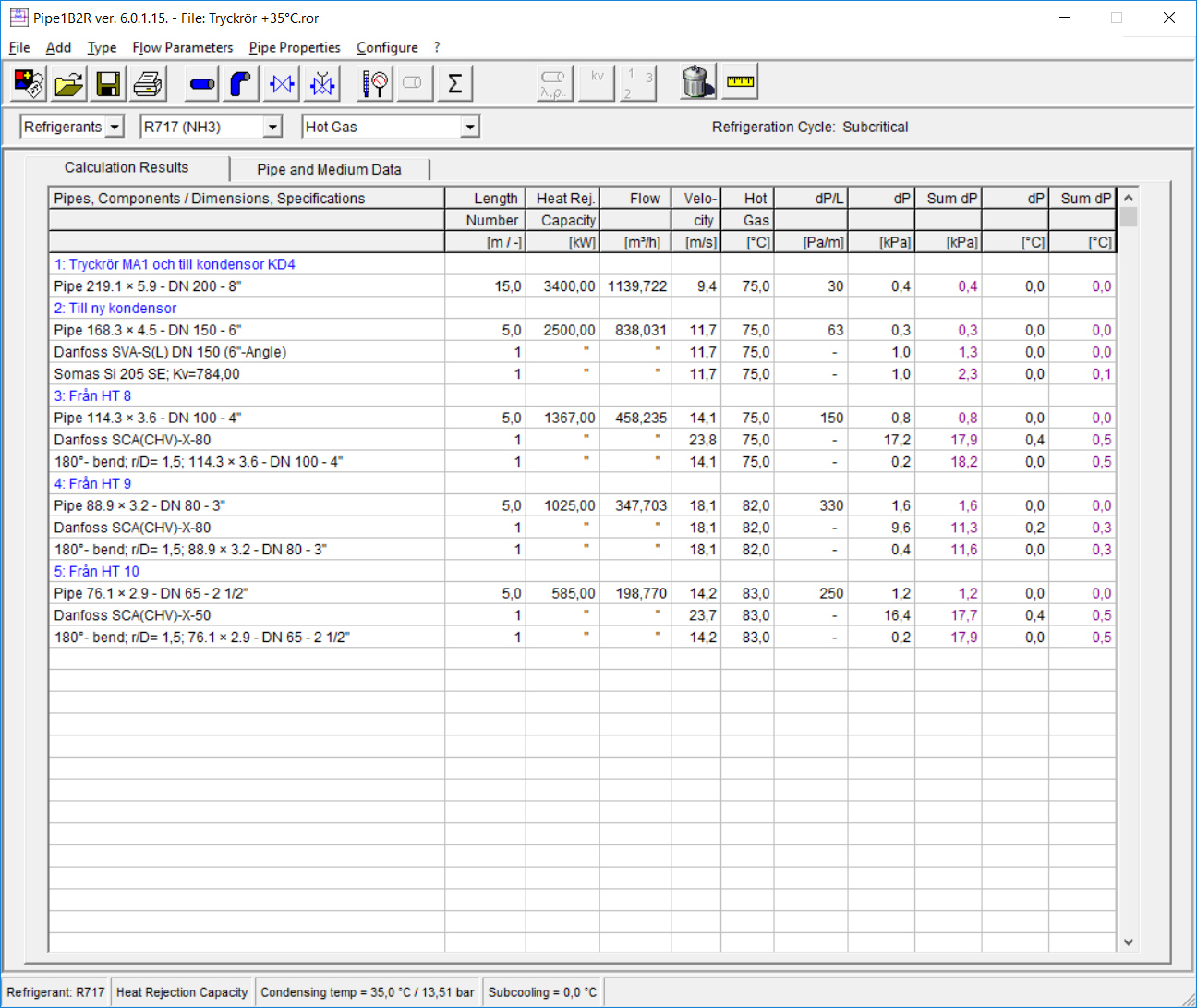

Below are screenshots of Pipe. Press on the images to view full size.

Order license Download
